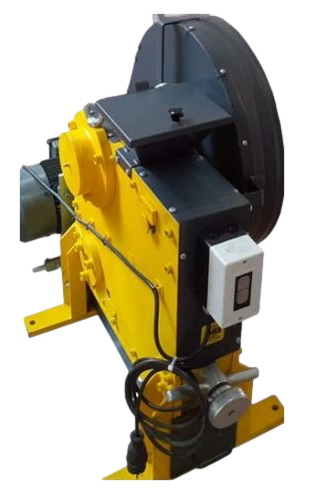

JAW CRUSHER (ELM-010)
Used to crush samples with medium-hard, hard, brittle and
tough materials. Efficiency and safety makes it ideal for
sample preparation in laboratories and industrial plants.
▪ Application examples are so wide such as construction
materials, glass, granite, minerals, quartz, rocks, silicon,
slag, coal, oxide ceramics … etc.
▪ The materials after crushing have high degree of size
reduction and high fineness.
▪ Jaw Dimensions: 100 x 350 mm, made of
(16%-18% Mn + 1.5% Cr).
▪ Double action of jaws that opens/closes from the bottom
and the crushing mechanism is from top to bottom.
▪ Supplied complete with electrical motor.
TECHNICAL SPECIFICATIONS
• Material feed size < 50 mm
• Jaws dimension: 100 x 350 mm
• Jaws are made of (16-18% Mn) + (1.5% Cr)
• Double Action of jaws:
• Opening /closing at bottom
• Crushing form up to bottom
• Jaw opening at the bottom is adjustable.
• Power Supply: 380 V / 50 Hz
