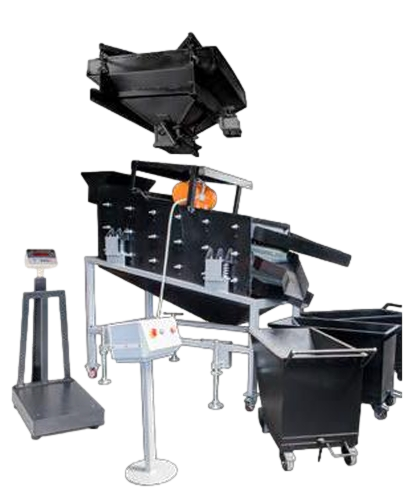

GRINDING and WEIGHING SYSTEM (ELM-076/ETS)
▪ Used wherever accepting the ore to the factory
▪ There are 4 functions in the system:
Lifting the sample:
▪ Capacity of the crane winch is 2000 kg
▪ Travel beam of the winch is limited by switchers
▪ Manual controlling device of the winch to be used by operator
Feeding:
▪ The bigbag is filled to the feeding tank by using the crane
▪ The feeding tank is carried on to the sieving system
▪ The bottom door is opened hydraulically by the operator
Grading:
▪ Grading is done by the 3 deck screening
▪ Each size is collected in the collector
Weighing:
▪ Different sizes of the materials are weighed by
the platform scale
The system is complete with:
▪ Platform scale with 2000 kg capacity (digital)
▪ Crane winch and supporting system with control unit
▪ Three dech grading machine with each deck 1000 x 2000 mm size
▪ Feeding tank with capacity of 1500 kg with hydraulic bottom door
▪ Trolleys made of steel construction (4 pcs)
