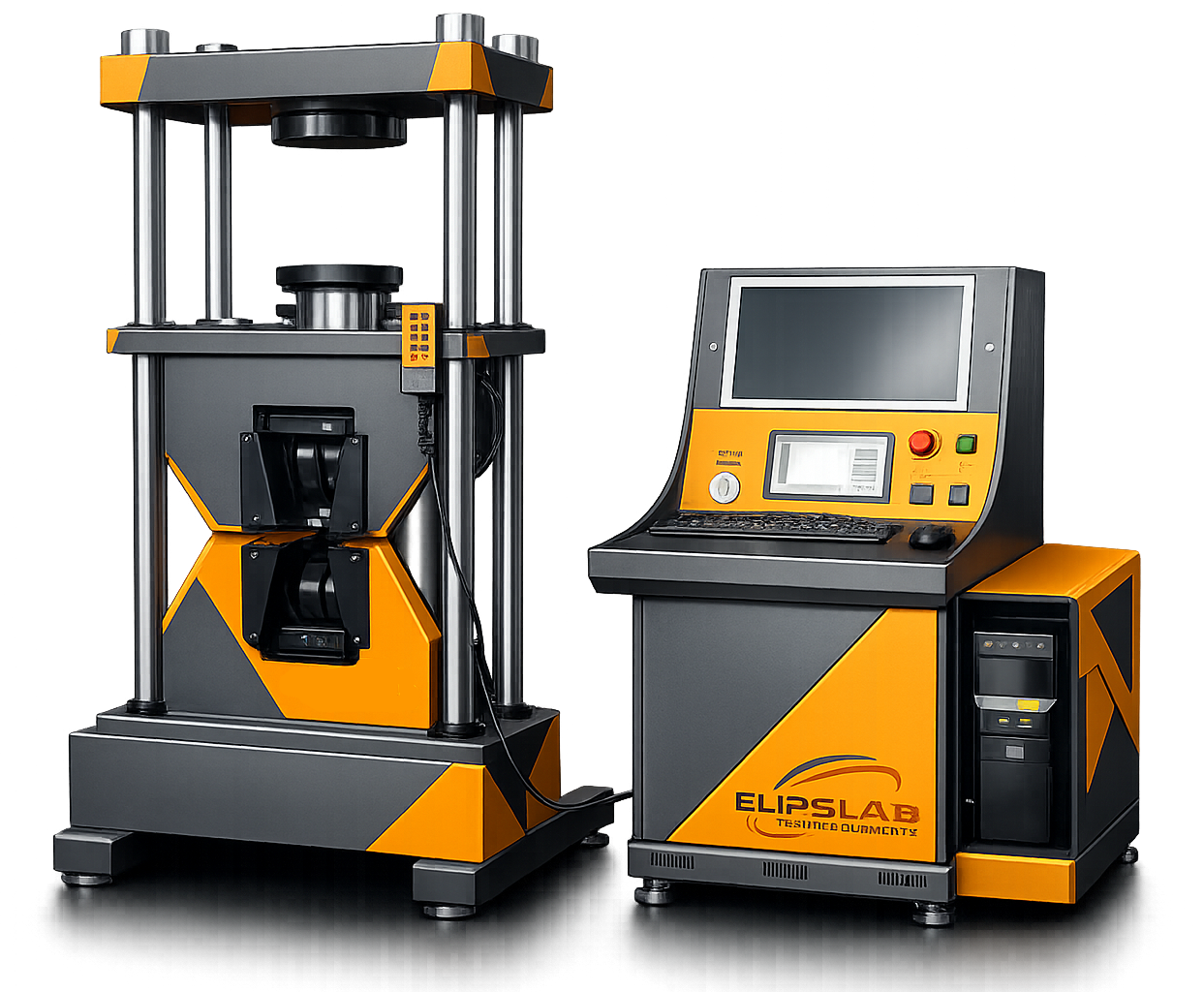

Universal Tensile And Compression Tester

TENSILE TESTING

1. Used to test the tensile strength of steel rebar.
2. The grippers of the machine is hydraulically operated by 2 independent auxiliary cylinders controlled by separated hydraulic valves. Those grippers are designed to firmly hold the steel rebar and avoid any slipping that might happen during the test on the rebar.
3. The upper mobile crosshead part of the machine is driven up/down by hydraulic piston. It is used to adjust the distance between upper and lower grippers to suite the length of the steel rebar.
4. Designed with different capacities (upon user’s request) such as: 300 kN (30 tons) / 600 kN (60 tons) / 1000 kN (100 tons) / 2000 kN (200 tons)
5. Capable of testing specimen with diameters ranging from 8 mm to 42 mm depending on the capacity.
6. Provides easier and faster reporting with the printing facility for the results and graphs.
7. The height is only 195 cm.

COMPRESSION TESTING

1. Used to test the compression strength of concrete cubes/cylinders of different sizes.
2. Equipped with an LCD unit that displays the data graphically of each test with the ability to save and recall the results of the tested materials.
3. The Data Acquisition Control provides a real-time graphical view for the sample.
4. Automatically determines the load rate upon sample type and in accordance with the international standards.
5. With the AUTO-STOP functionality, the machine will automatically stop upon finishing the test.
6. Upon user requirements, the machine can be either work in fully automatic mode or manual mode at which the user gets
7. the ability to adjust the load rate and period manually.
8. The upper seating adjusts itself to apply homogeneous loading on the sample.
9. For faster experience while testing, the daylight distance between the upper and lower platens can be adjusted using the hydraulic piston in accordance with the sample height; this will give the machine the ability to test all varieties of samples with a very wide range of sizes.

TENSILE TESTING

1. Fully Automatic - PC Controlled
2. Hydraulically operated grippers by 2 independent auxiliary cylinders controlled by separated hydraulic valves
3. Upper mobile crosshead driven up/down by a separated motor adjusting the distance between upper and lower grips with electronic distance meter
4. Available models:
5. 300 kN (30 tons)
6. 600 kN (60 tons)
7. 1000 kN (100 tons)
8. 2000 kN (200 tons)
9. Height: 210 cm only.
10. Print of Stress/Strain Diagram and Test Results.

USING THE MACHINE

1. The LCD control unit provides an easy, user-friendly experience with the machine. With the LCD unit, the user can control and monitor the tests/adjust the settings/calibrate the machine.
2. Performing the tests are now the easiest ever. With the computer connected to the machine, all the tests/ monitoring/calibrating can be done via computer using the state-of-the-art ELİPSLAB software provided with the machine.

HAND-HELD POSITIONING UNIT

1. This hand-held unit is used for positioning the upper cross-head, to suite the sample height, and to tighten the grippers on the sample before testing.

1. SAMPLE GRIPPERS
2. The specially designed grippers are used to hold the sample hydraulically while testing. The grippers have 2 different groves to suite wide range of samples.
