Laboratory Oven (EN 932:5 • ASTM C127 • BS 1377)
▪ Used for drying, conditioning and moisture determination.
▪ Equippedwith a digital thermostat and an indicatorwith range of ambient to 200°C (392°F) fittedwith overheatthermostat
to prevent accidental over-temperature and to provide a safe working environment.
▪ Maximum temperature is regulatedwith the Proportional IntegralDerivative (PID) control and goes to a maximum set value.
▪ Internal chamberis made of stainless steel and the exterior surface of the oven is powder coated (available in stainless
steel). Mineralwool is used in between the internal chamber and the outer cabinet for insulation.
▪ Exhaust holes for moisture discharge and fast cooling.
▪ Air circulating fan provides forced convection airflowfor uniformity of internaltemperature mounted on the back wall.
▪ Suppliedwith grid shelveswhich allows air-flowthat can be easily adjusted and/or removed
Product No: (ELG-010)

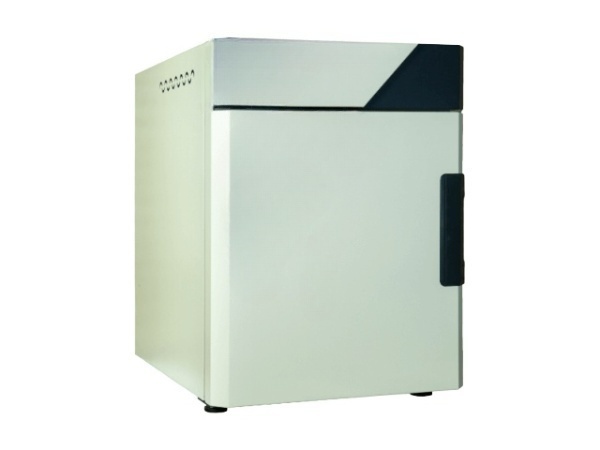

LABORATORY OVEN (ELG-010)
LABORATORY OVEN (ELG-010)2

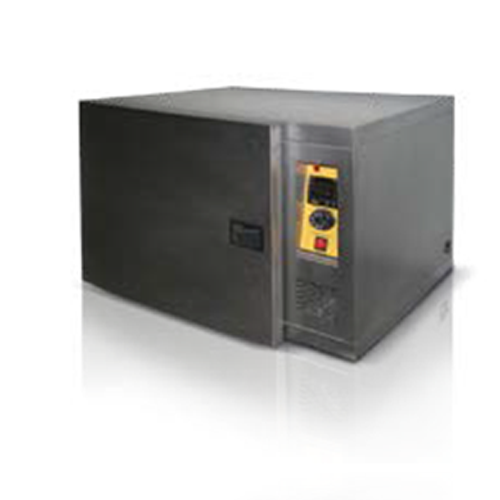

LABORATORY OVEN (ELG-010)3
Code | Capacity | # of Doors | # of Shelves | # of Fans | External Cabinet Dimensions (W x L x H) | Internal Chamber Dimensions (W x D x H) | Approximate Weight | Power |
ELG-010/120 | 112.5 lt 4 cu. ft. | 1 | 2 | 1 | 75 x 64 x 62 (h) cm 29.5” x 25.2” x 24.5” | 50 x 45 x 50 (h) cm 19.6” x 17.7” x 19.6” | 67 kg 148 lb | 800 Watts |
ELG-010/250 | 225 lt 8 cu. ft. | 1 | 2 | 1 | 70 x 70 x 127 (h) cm 27.5” x 27.5” x 50” | 50 x 45 x 100 (h) cm 19.6” x 17.7” x 39.2” | 90 kg 198 lb | 1200 Watts |
ELG-010/250 | 225 lt 8 cu. ft. | 2 | 2 | 2 | 119 x 70 x 76 (h) cm 47” x 27.5” x 30” | 100 x 45 x 50 (h) cm 39.2” x 17.7” x 39.2” | 105 kg 232 lb | 1200 Watts |
ELG-010/400 | 400 lt 14 cu. ft. | 1 | 2 | 2 | 98 x 82 x 126 (h) cm 38.5” x 32” x 49.6” | 68 x 56 x 107 (h) cm 26.8” x 22” x 42” | 130 kg 285 lb | 1200 Watts |
